Miller CX6 Solo-Q 75 3 Stage Carbon Fibre Tripod System

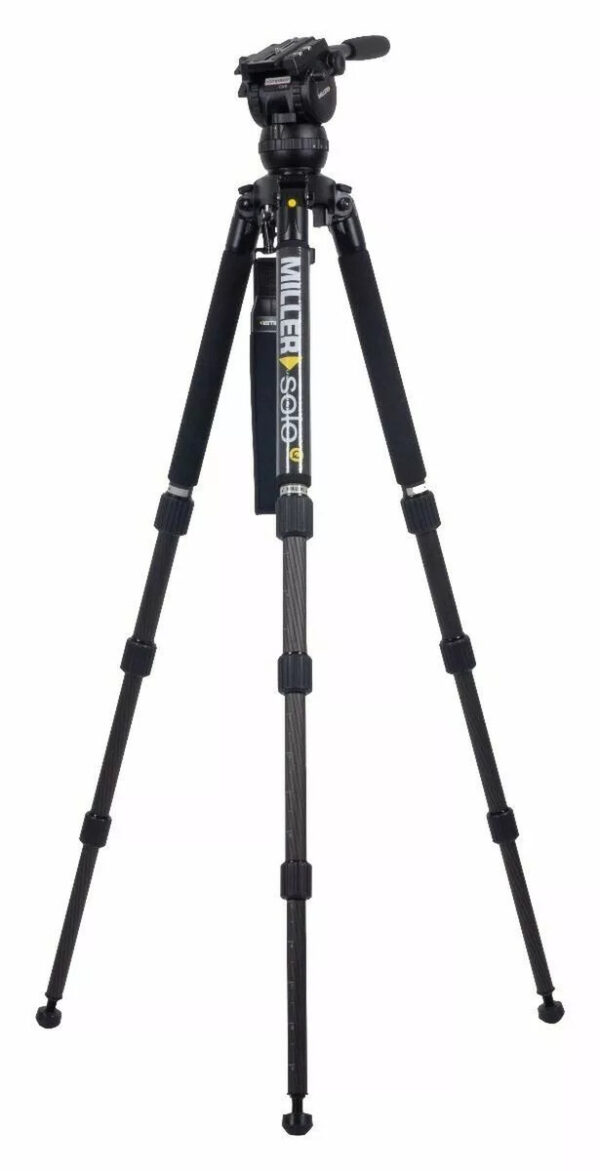

The 3730 CX6, Solo-Q 75 3-stage (carbon fibre) tripod system consists of the CX6 fluid head and the ultra-light, rigid Solo-Q 75 3-stage (carbon fibre) tripod.
Designed to adapt to your shooting needs for camera rigs from 0kg to 12kg. Whether it’s ENG, soft news, documentary or filmmaking, the CX6 is a versatile, powerful head with outstanding performance. With advanced fluid drag, radial control rings and quick release side loading platform the CX6 is fast to set up, smooth and precise.
The CX6 employs CB Plus™ technology providing 16 positions of counterbalance and, with 3+0 levels of Miller’s unrivalled fluid drag, 60mm of camera plate travel, you can quickly tune to your tripod configuration for perfect camera control.
The CX6 is matched with the 3 stage Solo-Q (carbon fibre) tripod that results in a range topping height range of 390-2040mm (15.4-80.3″), rapid action twist locks on independent stages and the versatility to set up system across all terrains.
$3,123.00
Specification – CX6 Solo-Q 75 3 Stage Carbon Fibre
| Payload Range | 0-12kg (0-26.4lbs) | ||||||||||
| Weight | 6.0kg (13.2lbs) | ||||||||||
| Height Range | 398-2049mm (15.7-80.7″) | ||||||||||
| Transport Length | 832mm (32.8″) | ||||||||||
| Counterbalance Positions | 16 selectable positions (15+0) | ||||||||||
| Pan Tilt Drag | 3 selectable fluid drag positions + 0 | ||||||||||
| Pan Tilt Locks | Positive lock calliper brake system | ||||||||||
| Tilt Range | + 90°/ -75° | ||||||||||
| Pan Range | 360° | ||||||||||
| Camera Platform | Quick release, side load camera plate | ||||||||||
| Sliding Range | 60mm (2.4″) | ||||||||||
| Mounting Base | Ø75mm (2.9″) ball levelling | ||||||||||
| Height Above Bowl | 167mm (6.6″) | ||||||||||
| Illuminated Controls | Bubble level | ||||||||||
| Pan Handle | Fixed length 390mm (15.4″) | ||||||||||
| Temperature Range | -40° to +65°C (-40° to +149°F) | ||||||||||
| Leg Extension | 3-stage telescopic | ||||||||||
| Lock Type | Concentric Rapid Lock & Q-Lock | ||||||||||
| Leg Material | Carbon fibre | ||||||||||
| Components |
|
