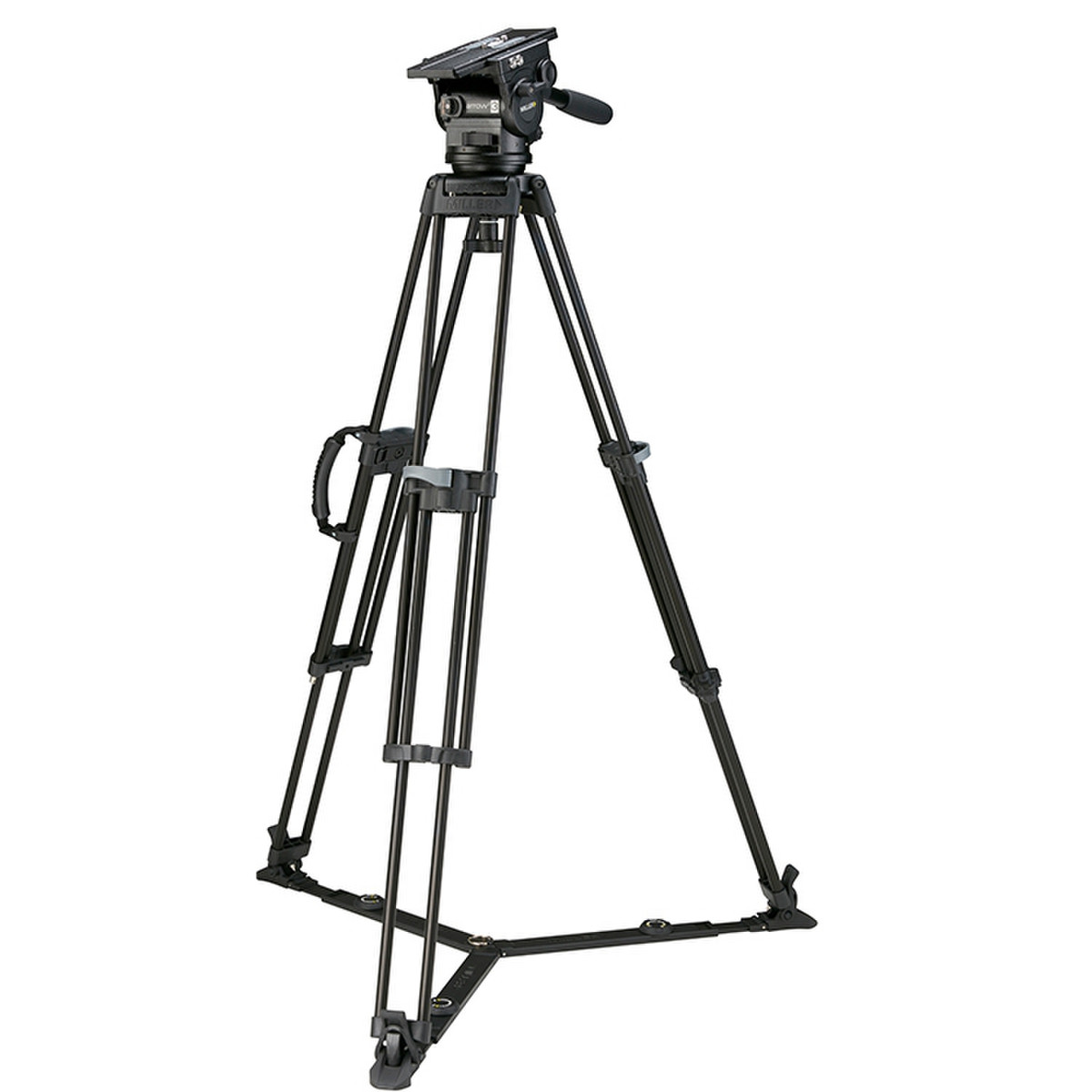

Miller ArrowX 3 Sprinter II 1 Stage Alloy Tripod System With Ground-Level Spreader


The 3034 Alloy, Sprinter II, 1-stage Arrowx 3 system, fitted with ground spreader is designed for speed of setup, high level of stability and flexibility of payload, is best suited for level terrain.
Featuring a wide payload range, precision fluid drag and Miller’s innovative 16 position CB Plus™ counterbalance system, Arrowx 3 delivers the flexibility, speed of set up and accuracy of shot, professionals expect and demand.
1-19kg (2.2-41.8lbs) payload range and 5 + 0 selectable pan-tilt fluid drag positions make Arrowx 3 ideal for news gathering and documentaries, enabling it to be used with a wide range of cameras, lenses and accessories.
The Arrowx 3 is matched with the 1 stage Sprinter II (alloy) tripod and ground spreader to give incredible speed of setup.
Gone are the days where you have to carry two tripods to use large and small cameras on the same shoot.


Specification – Arrowx 3 Sprinter II 1 Stage Alloy

Payload Range 1.0-19.0kg (2.2-41.8lbs)
Weight 7.5kg (16.7lbs)
Height Range 797-1587mm (31.4-62.5″)
Transport Length 1002mm (39.4”)
Counterbalance Positions 16 selectable positions
Pan Tilt Drag 5 selectable fluid drag positions + 0
Pan Tilt Locks Positive lock calliper brake system
Tilt Range + 90°/ -75°
Pan Range 360°
Camera Platform Quick release camera plate (Euro)
Sliding Range 120mm (4.7”)
Mounting Base Ø100mm (3.9″) ball levelling
Height Above Bowl 162mm (6.4″)
Illuminated Controls Bubble level, pan-tilt drag controls
Pan Handle Telescopic 390-590mm (15.4-23.2″)
Temperature Range -40° to +65°C (-40° to +149°F)
Leg Extension 1-stage
Lock Type HS Single Action
Leg Material Alloy
1072 Arrowx 3 fluid head
1589G Sprinter II 1-stage tripod (alloy)
470 On ground spreader
696 Pan handle – telescopic with clamp
3500 Arrowx softcase 1-stage
SKU: MIL-3034 Category: Brand:
