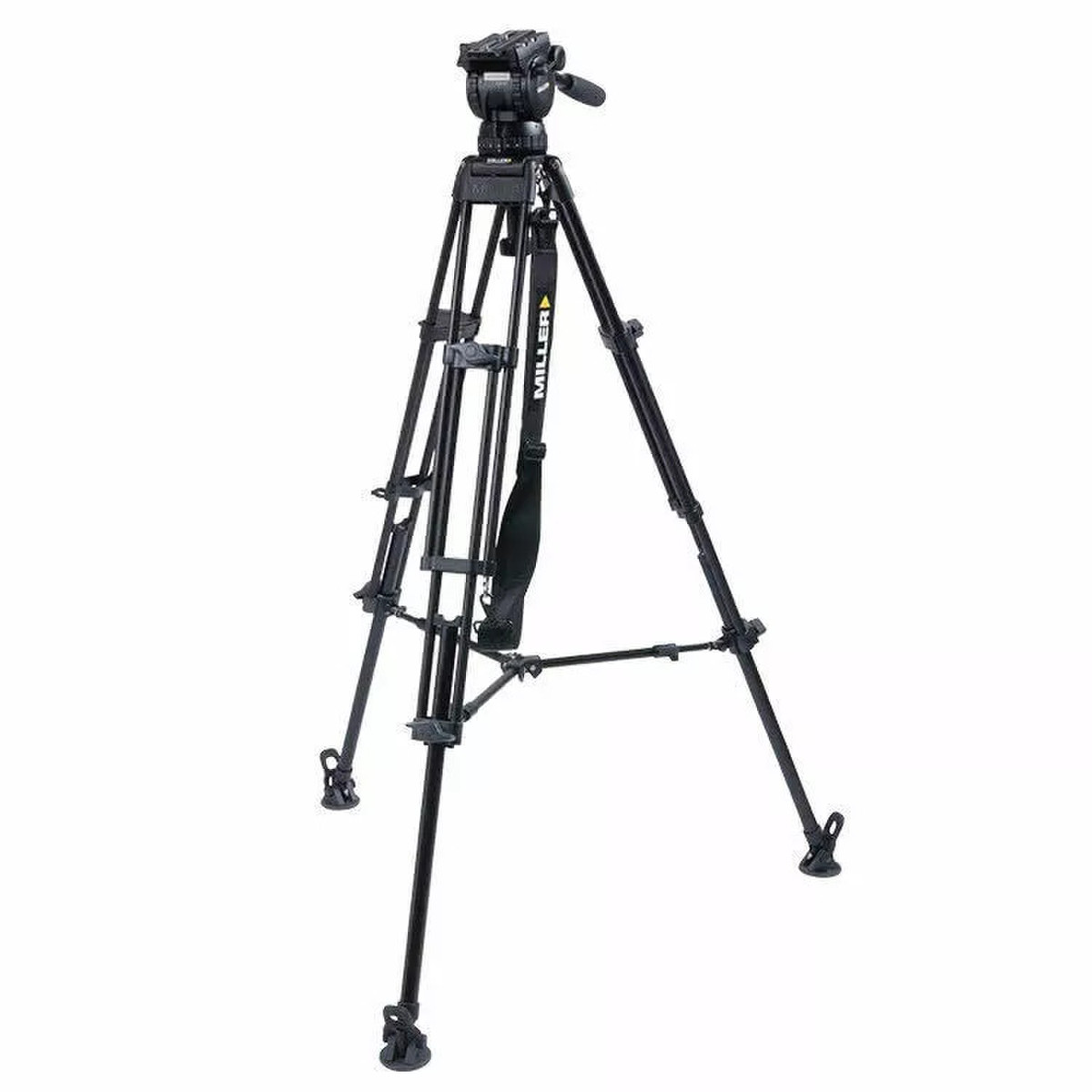

Miller CX10 Toggle 2 Stage Alloy Tripod System With Above Ground Spreader


The 3756 CX10 Toggle 2-stage (alloy) tripod system with a robust 100mm ball levelling fluid head designed for users needing the stability that comes with 100mm tripods, cost effectively.

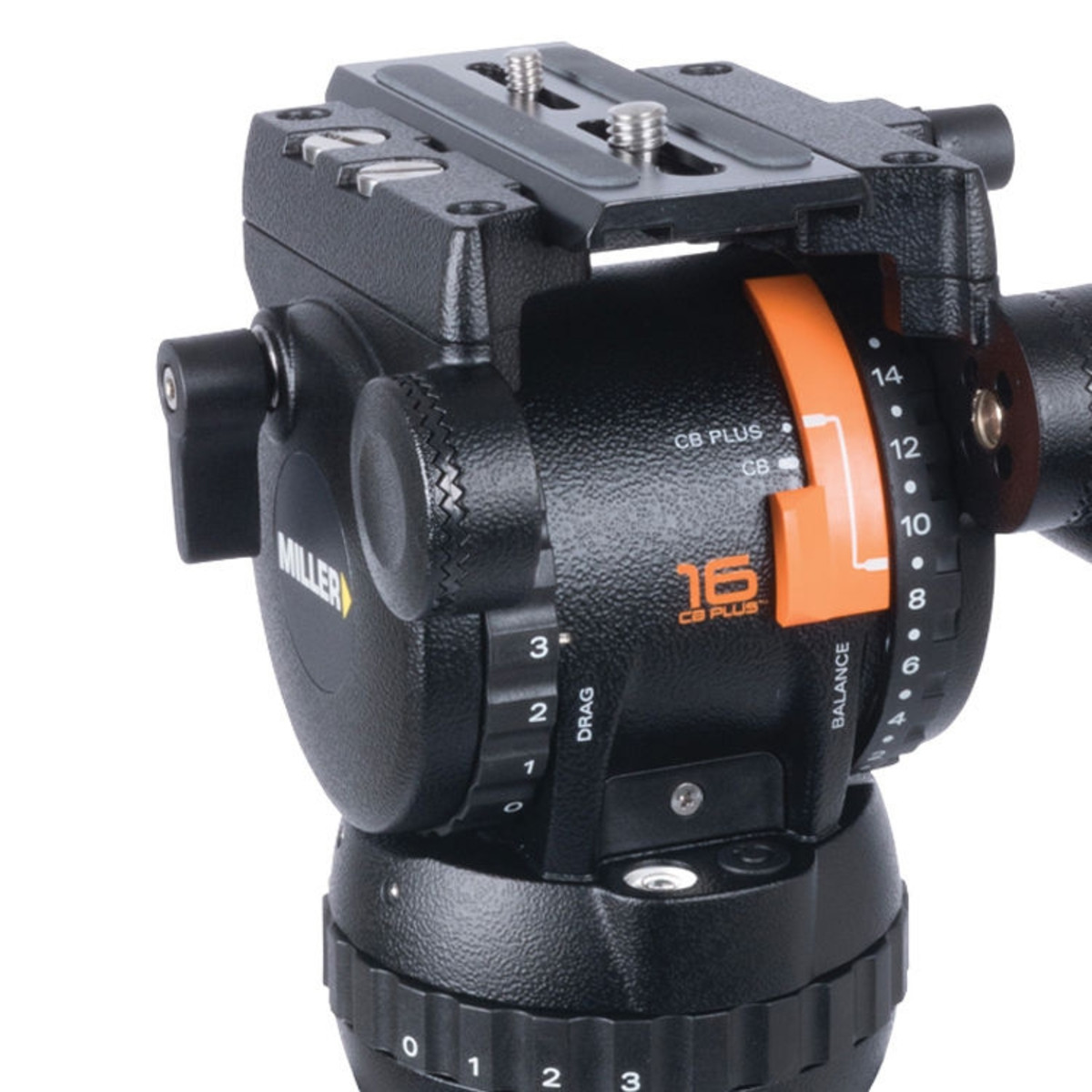

CX10 employs CB PlusTM technology providing 16 positions of counterbalance and 5+0 levels of pan and tilt settings of Miller’s fluid drag with 60mm of camera plate travel, enabling you to easily select the perfect settings to match your configuration for ultimate camera control.
The CX10 is matched with the 2-stage Toggle (alloy) tripod and above-ground spreader to provide a large height range 543-1713mm (21.4-67.4″), positive leg toggle locks and the versatility of using the system across all terrains.


Specification – CX10 Toggle 2 Stage Alloy

Payload Range 0-12kg (0-26.4lbs)
Weight 6.9kg (15.2lbs)
Height Range 543-1713mm (21.4-67.4”)
Transport Length 843mm (33.2”)
Counterbalance Positions 16 selectable positions (15+0)
Pan Tilt Drag 5 Selectable fluid drag positions + 0
Pan Tilt Locks Positive lock calliper brake system
Tilt Range + 90°/ -75°
Pan Range 360°
Camera Platform Quick release, side load camera plate
Sliding Range 60mm (2.4″)
Mounting Base Ø100mm (3.9″) ball levelling
Height Above Bowl 150mm (6.0″)
Illuminated Controls Bubble level
Pan Handle Fixed length 390mm (15.4″)
Temperature Range -40° to +65°C (-40° to +149°F)
Leg Extension 2-stage
Lock Type HS Dual Action
Leg Material Alloy
1096 CX10 fluid head
402 Toggle 2-stage tripod (alloy)
508 Above ground spreader
679 Pan handle – fixed with clamp
554 Shoulder strap (padded)
550 Rubber feet (set of 3)
3500 Arrowx Softcase 1-stage
SKU: MIL-3756 Category: Brand:
