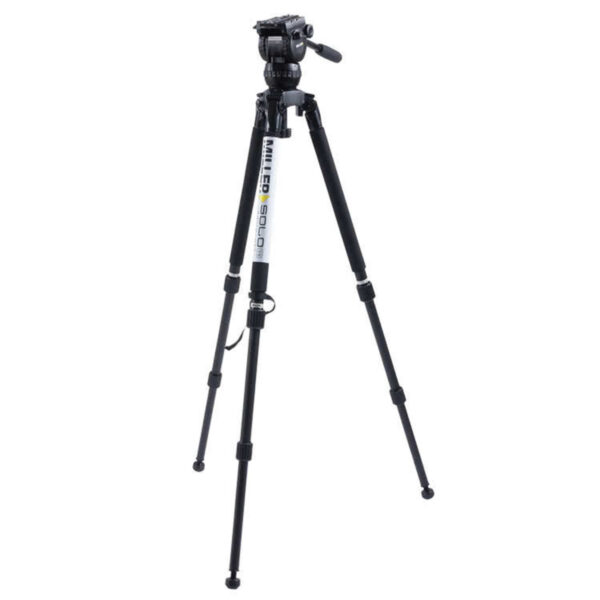

Miller CompassX CX8 Solo 75 2-Stage Alloy Tripod System


The 3742 CX8 Solo 75 2-stage (alloy) tripod system combines with the innovative 1630 Solo tripod and CX8 fluid head. An ideal tripod system for cinematic and documentary, where the payload and centre of gravity changes frequently due to lens or accessories swapping.

CX8 is the premium head in the 75mm ball levelling CompassX series. Designed for camera rigs from 0kg to 12kg, with CB plus 16 balance positions and 5 levels of fluid drag, it sets the standard in professional compact camera supports.

The Compass 20 is matched with the 2-stage Solo (alloy) tripod resulting in a height range of 414-1805mm (16.3-71.1″), and offering rapid action twist locks and the versatility of the 3 position leg angles.


Specification – CX8 Solo 75 2 Stage Alloy

Payload Range 0-12kg (0-26.4lbs)
Weight 6.0kg (13.2lbs)
Height Range 414-1805mm (16.3-71.1″)
Transport Length 870mm (34.3″)
Counterbalance Positions 16 selectable positions (15+0)
Pan Tilt Drag 5 selectable fluid drag positions + 0
Pan Tilt Locks Positive lock calliper brake system
Tilt Range + 90°/ -75°
Pan Range 360°
Camera Platform Quick release, side load camera plate
Sliding Range 60mm (2.4″)
Mounting Base Ø75mm (2.9″) ball levelling
Height Above Bowl 167mm (6.6″)
Illuminated Controls Bubble level
Pan Handle Fixed length 390mm (15.4″)
Temperature Range -40° to +65°C (-40° to +149°F)
Leg Extension 2-stage telescopic
Lock Type Concentric Rapid Lock
Leg Material Alloy
1093 CX8 fluid head
1630 Solo 75 2-stage tripod (alloy)
679 Pan handle – fixed with clamp
1520 Solo shoulder strap (Aircell)
3514 Softcase 2-stage
SKU: MIL-3742 Category: Brand:
