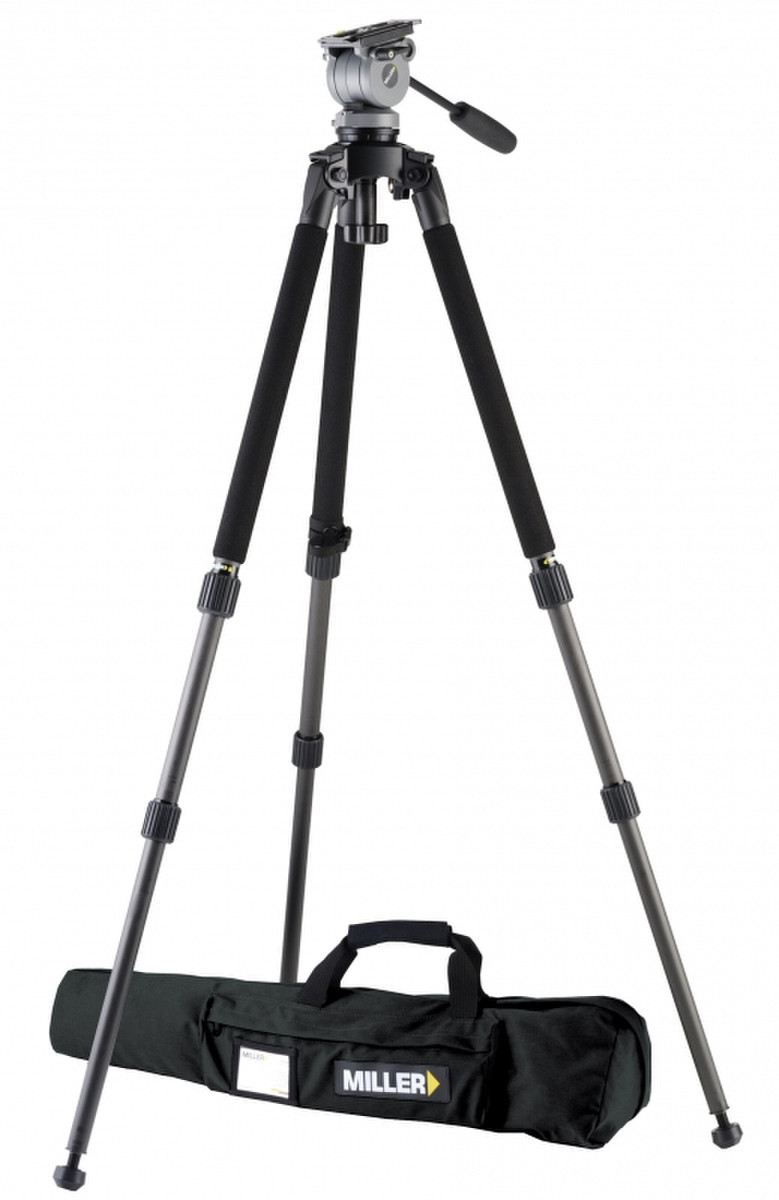

Miller DS20 Solo DV Alloy Tripod System (1643)


The 1643 DS20 Solo 75 2-Stage Alloy system offers incredible price-performance solution for 10 kg/22 lbs payloads, combining the ultra-rigid alloy Solo 1630 tripod with the versatile DS20 75mm ball levelling head & selectable counterbalance.

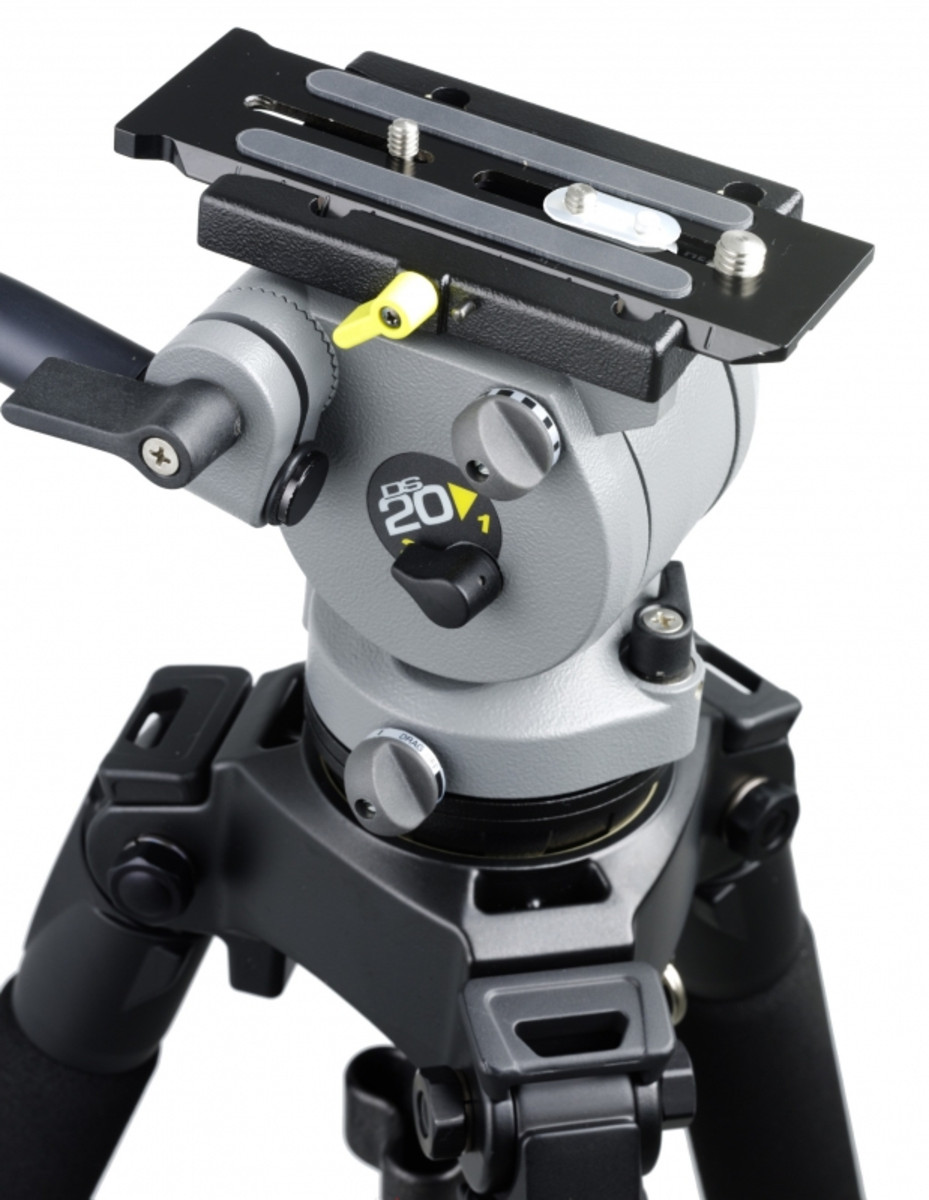

The DS20 provides a perfect lightweight solution for those who want a smaller fluid head but need more capacity than the DS10. An economical solution for payloads up to 10kg (22lbs).
Whether you are in the field or configured for small studio use, the dual position counterbalance plus
60mm camera plate travel enables quick and easy balancing in both standard and accessorised camera configurations. Whatever your application the DS20 will impress your clients.

The DS20 is matched with the 2 stage Solo (alloy) tripod resulting in a working height range of 371-1762mm (14.6-69.4″), offering rapid action twist locks on independent stages with the versatility to set up system across all terrains.


Specification – DS20 Solo 75 2 Stage Alloy

Payload Range 5.0-10.0kg (11.0-22.0lbs)
Weight 4.8kg (10.7lbs )
Height Range 371-1762mm (14.6-69.4″)
Transport Length 837mm (33”)
Counterbalance Positions 2 selectable positions
Pan Tilt Drag Adjustable fluid drag, temperature resistant
Pan Tilt Locks Positive lock calliper brake system
Tilt Range + 90°/ -75°
Pan Range 360°
Camera Platform Sliding camera plate
Sliding Range 60mm (2.4″)
Mounting Base Ø75mm (2.9″) ball levelling
Height Above Bowl 137mm (5.4″)
Pan Handle Fixed length 390mm (15.4″)
Temperature Range -40° to +65°C (-40° to +149°F)
Leg Extension 2-stage telescopic
Lock Type Concentric Rapid Lock
Leg Material Alloy
184 DS20 fluid head
1630 Solo 75 2-stage tripod (alloy)
681 Pan handle – fixed with clamp
3516 Solo 75 2-stage tripod bag
SKU: MIL-1643 Category: Brand:
