Trusst CTC50G Load Rated Gipper Clamp
The Trusst CTC-50G is a heavy duty 50mm ‘gripper’ clamp for safely mounting your lighting or video fixtures. Capable of supporting up to 250 kg with a unique design that make mounting even the heaviest fixture safe and easy. Perfect for production companies and large event spaces.
$49.00

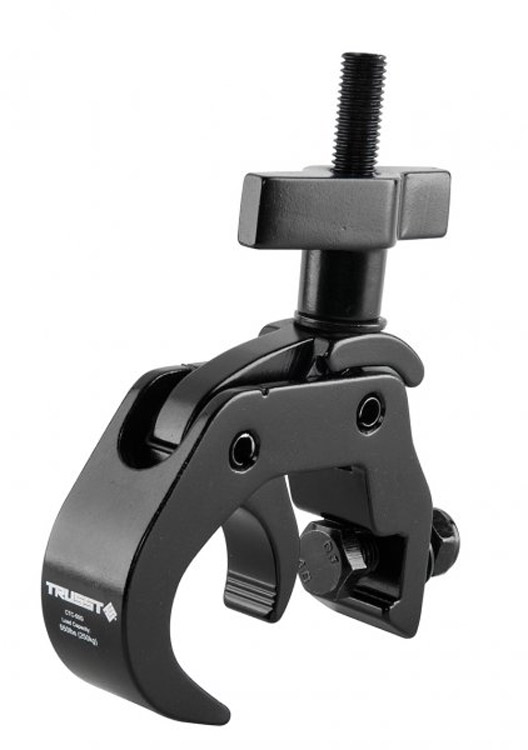

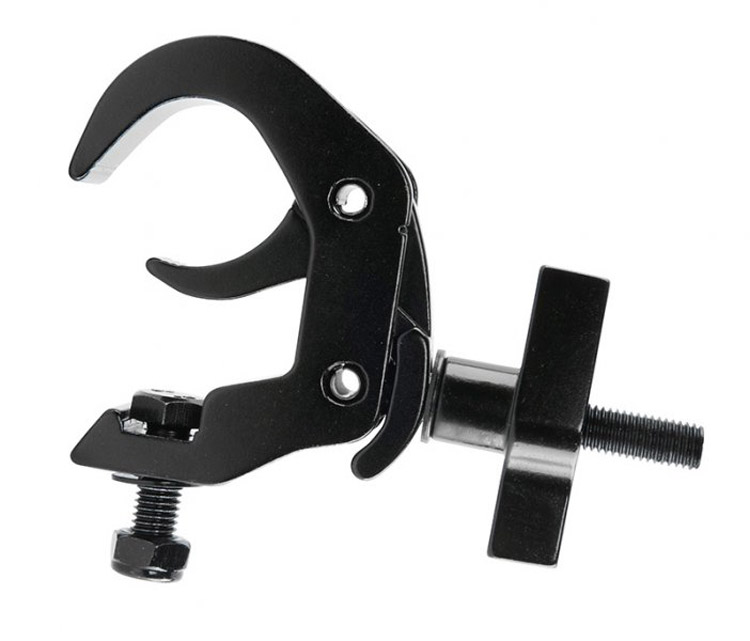

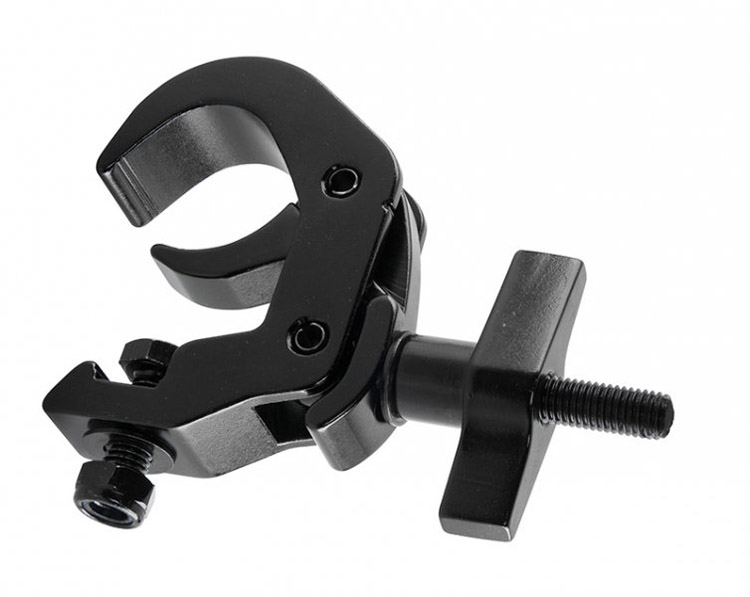

The CTC-50G is a black anodised load rated heavy duty C-clamp made from extruded aluminium with a load rating of 250 kg (550 lbs). The wrap around style won’t scratch or damage truss and the captive T-handle is oversized to ease installation and tightening of the clamp without the use of tools. Built with reliability, safety, and durability in mind, the CTC-50G can handle heavier loads and is made for hanging fixtures from truss or 2-inch pipes, including the CT290 series TRUSST and other major brands of trussing.
Related products
-
Clamps Half Coupler, Barrel, Grab, C-Clamp and Piper
Avenger C461-1 Eye Coupler LP 28mm TV Spigot Range 48-52mm 220kg Payload Alum Alloy Spigot 28mm
Clamps Half Coupler, Barrel, Grab, C-Clamp and PiperAvenger C461-1 Eye Coupler LP 28mm TV Spigot Range 48-52mm 220kg Payload Alum Alloy Spigot 28mm
Avenger C461-1 Eye Coupler LP 28mm TV Spigot Range 48-52mm 220kg Payload Alum Alloy Spigot 28mm.
- Made from aluminium alloy
- Can be tightened with a wingnut and has a 28mm TV spigot for TV broadcasting luminaries.
- Support a payload up to 500kg
- Works on pipes ranging from 48mm to 52mm.
SKU: AVN-C461-1 -
Clamps Half Coupler, Barrel, Grab, C-Clamp and Piper
Avenger C345BK-1 Clamp Barrel T-Knob TUV Black 40-300Kg Payload 16/28mm M Gravity Casting w Safety Cable
Clamps Half Coupler, Barrel, Grab, C-Clamp and PiperAvenger C345BK-1 Clamp Barrel T-Knob TUV Black 40-300Kg Payload 16/28mm M Gravity Casting w Safety Cable
This aluminum gravity casting black Barrel Clamp works on diameters from 42mm to 52mm. It holds a payload of 40kg on a 16mm attachment and 600kg on a 28mm attachment. The clamp is TUV SUD certified for maximum security for the user. It features 3 attachments: 5/8” (16 mm) bushing, 1” 1/8 (28 mm) bushing, and a 5/8” (16 mm) spigot. This clamp is extremely strong, featuring a knob locking mechanism for easy operation, and it includes a safety cable.
The C345BK supplied is black in colourSKU: AVN-C345BK-1 -
Clamps Half Coupler, Barrel, Grab, C-Clamp and Piper
Avenger C464-1 Coupler LP Eye M12 Bolts Nuts Range 48-52mm 300kg Payload Alum Alloy
Clamps Half Coupler, Barrel, Grab, C-Clamp and PiperAvenger C464-1 Coupler LP Eye M12 Bolts Nuts Range 48-52mm 300kg Payload Alum Alloy
The Avenger C464-1 LP Eye Coupler grid clamp comes supplied with an attached M12 Bolt and includes the nut which is ideal for customized applications. This popular clamp is ideal for many rigging systems, truss and entertainment configurations. The LP Eye Coupler uses a wing nut with washer locking design and is able to clamp down on round tubes, truss or grids ranging from 48 mm(1.9”) to 52 mm(2.04”) and is 50 mm(1.96”) wide. Capable of holding up to 220 kg/661.4 lb loads this clamp will perform in many demanding environments. TÜV and SÜD certified. Recommended Accessories: E390, C155, C460-1, C461-1, C463-1, C4460-1, C462-1, E200, C4465-1.
SKU: AVN-C464-1 -
Clamps Half Coupler, Barrel, Grab, C-Clamp and Piper
Avenger C345K-1 Clamp Barrel T-Knob TUV Silver 40-300Kg Payload 16/28mm M Gravity Casting w Safety Cable
Clamps Half Coupler, Barrel, Grab, C-Clamp and PiperAvenger C345K-1 Clamp Barrel T-Knob TUV Silver 40-300Kg Payload 16/28mm M Gravity Casting w Safety Cable
The Avenger C345K-1 Barrel Clamp in silver is made with gravity cast aluminum, has a built in 28 mm/ 1 1/8 inch junior receiver, a 16 mm/ 5/8 inch baby pin with a 1/4” threaded top and a 16 mm/5/8 inch receiver. This barrel clamp is capable of mounting pipes or tubes ranging from 42 – 52 mm/1.65 – 2.05 inch and easily locks into place using a T-Knob. The baby attachment can support loads up to 40 kg while the junior receiver can take capacities up to 300 kg/661.4 lb. The C345K-1 includes a safety cable with locking pin to secure attachments that are mounted in the junior receiver. TÜV SÜD certified. Recommended Accessories: C155, C155-01, C155-02 E200, FF3276, A2029, C590, C626.
SKU: AVN-C345K-1
