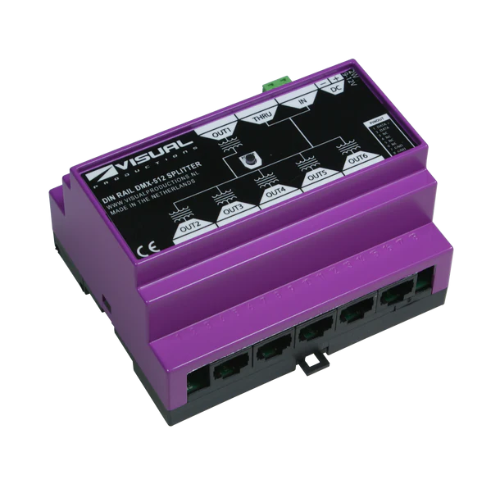

Visual Productions Din Rail DMX-512 Splitter RJ-45 Connections

The RdmSplitter is an optically isolated splitter/booster for DMX networks.

Extend the DMX network
The widespread data protocol for lighting equipment is DMX-512. It is a very successful protocol with, however, a few limitations. The maximum number of attached devices is limited to 32 and a DMX cable should not be longer than 300 meters. The RdmSplitter helps tackle those inconvenient limitations. The Splitter takes a DMX signal and sends it out again on its 6 DMX output ports. Each output port is capable of driving 32 more devices. The Splitter can also function as a signal booster as each port supports another 300 meter long connection.

Make cable runs easier
The DIN Rail DMX Splitter is designed with installers and system integrators in mind. The Splitter features a DIN Rail enclosure that allows easy mounting. There are two models avialable: one with detachable terminal connections for a quick replacement of the unit. And one model with RJ-45 connectors to further reduce the time required to create a DMX network on site.

Prevent ground loops
The DMX output ports are protected through optical isolation, safe guarding the splitter and its connected equipment against power surges and dangerous ground loops.
Combine with other products from the family
The RDMSplitter can easily be combined with the CueCore2 and QuadCore lighting engines. Or the IoCore2, a GPI, GPO & RS-232 interface module. And the B-Station and Kiosc. There is also a RDM/DMX splitter available with terminal screw connectors.
