1 HU
130mm (5.1′) deep
$230.00

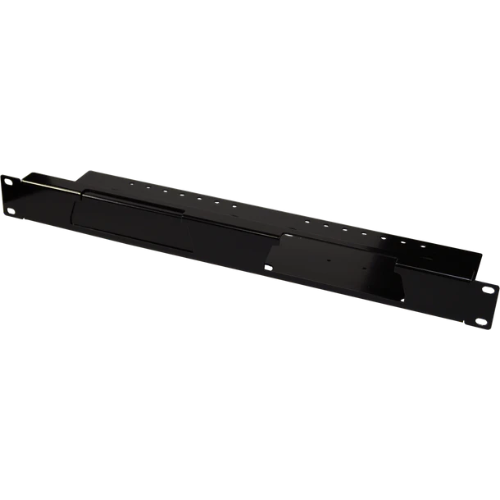

The Rackmount enables you to mount two CueCores, QuadCores, IoCores or TimeCores into a 19′ wide rack.
The unit is fitted with a blind panel to cover one mounting position.
The TecArt range of data splitters are available as DIN Rail mountable units.
Each output has a separate driver and opto-isolator to ensure the highest possible level of protection.
The unit is available as a standard DMX splitter or with the option of RDM.
RDM compliant device “ANSI/ESTA E1.20 Entertainment Technology – Remote Device Management over USITT DMX512”.
RDM or Remote Device Management is a protocol enhancement to DMX512 that allows Bi-directional communications between light fixtures and lighting consoles or RDM specific software over a standard DMX line.
DMXS4DR can be supplied with an external 12 – 48VDC power supply.
FEATURES
• DMX-512 In/Out/Thru.
• External Power Supply 12 – 48VDC.
• Terminal Strip Output and Input Connector.
• 2 Main indication LEDs.
SPECIFICATIONS
• Input voltage: 12 – 48VDC.
• Power supply: External.
• Total power: 6W @ 24VDC.
• Dimension: 105mm (L) 85mm (W) 60mm (H).
• Mounting method: DIN Rail.
• DMX signal input: Terminal block.
• DMX signal output: Terminal block.
• Outputs: 4 Opto isolated.
• Temperature: 0 – 40 degree Celsius.
Contact us for dealer pricing.
The ArtNode 2 is an ArtNet to dual-purpose DMX node for architectural and entertainment lighting control applications.
FEATURES
• Multi mode: ArtNet to DMX, 2 x DMX to ArtNet.
• External power supply 9-24VDC (supplied separately).
• Robust housing.
• 2 main indication LEDs.
SPECIFICATIONS
• Input Voltage: 9–24VDC.
• Power: 6VA (at 24VDC).
• Dimensions (mm): 117 L x 115 W x 53 H.
• Mounting Options: Desk-mount.
• DMX Input/Output: 5-pin XLR.
• Outputs: 2 x DMX Universes.
• Inputs: 1x Ethernet
• Operating Temperature: 0 – +40°C.
The Datastream 4 by Chauvet DJ is designed to allow 4 additional daisy-chains to be added and still allow the original signal to continue through. This is perfect for long runs of DMX where multiple batches in different locations are used.
The Chauvet DJ XPRESS-RACK1024 is a rackmount DMX interface for ShowXpress software. Capable of controlling 2 DMX universes while also unlocking an additional ArtNet universe; giving you 3 universes total. As a result, you can easily store and playback up to 16 shows without a computer; using either the onboard buttons or by the included remote.
Chauvet DJ DMX-AN2
The Chauvet DJ DMX-AN2 is a multi-purpose Art-Net/sACN node that converts 1 Ethernet cable to 2 DMX universes. Its optical and electrical isolation is ready for any situation and the durable Neutrik® etherCON® in/through port ensures reliability. The built-in web-based GUI means no universe/subnet setup. DMX-AN2 automatically redirects the web page if the IP address is changed. The unit supports Power over Ethernet (POE) or an external power supply. Both outputs can be set to either Art-Net or sACN and DMX-AN2 functions as an Art-Net to DMX or DMX to Art-Net interface. Onboard LED indicators quickly inform status and the integrated mounting bracket is included to quickly install into any location.
