Miller CompassX CX8 Toggle 2-Stage Alloy Tripod System With Above Ground Spreader

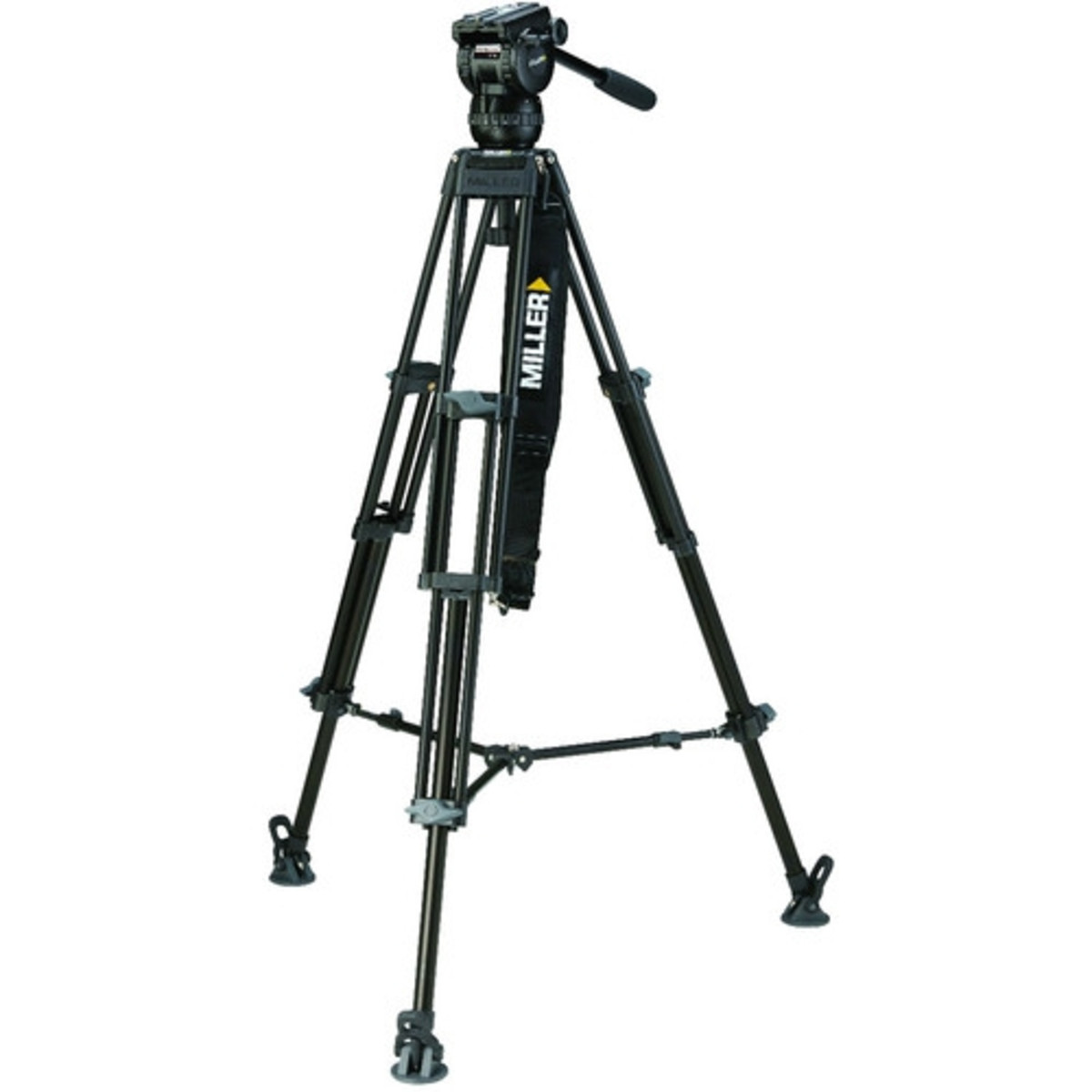

The 3737 CX8 Toggle 2-stage (alloy) tripod system consists of CX8 fluid head and cost-effective yet rugged 420 Toggle tripod with above ground spreader. An ideal tripod system for cinematic and documentary, where the payload and centre of gravity changes frequently due to lens or accessories swapping.

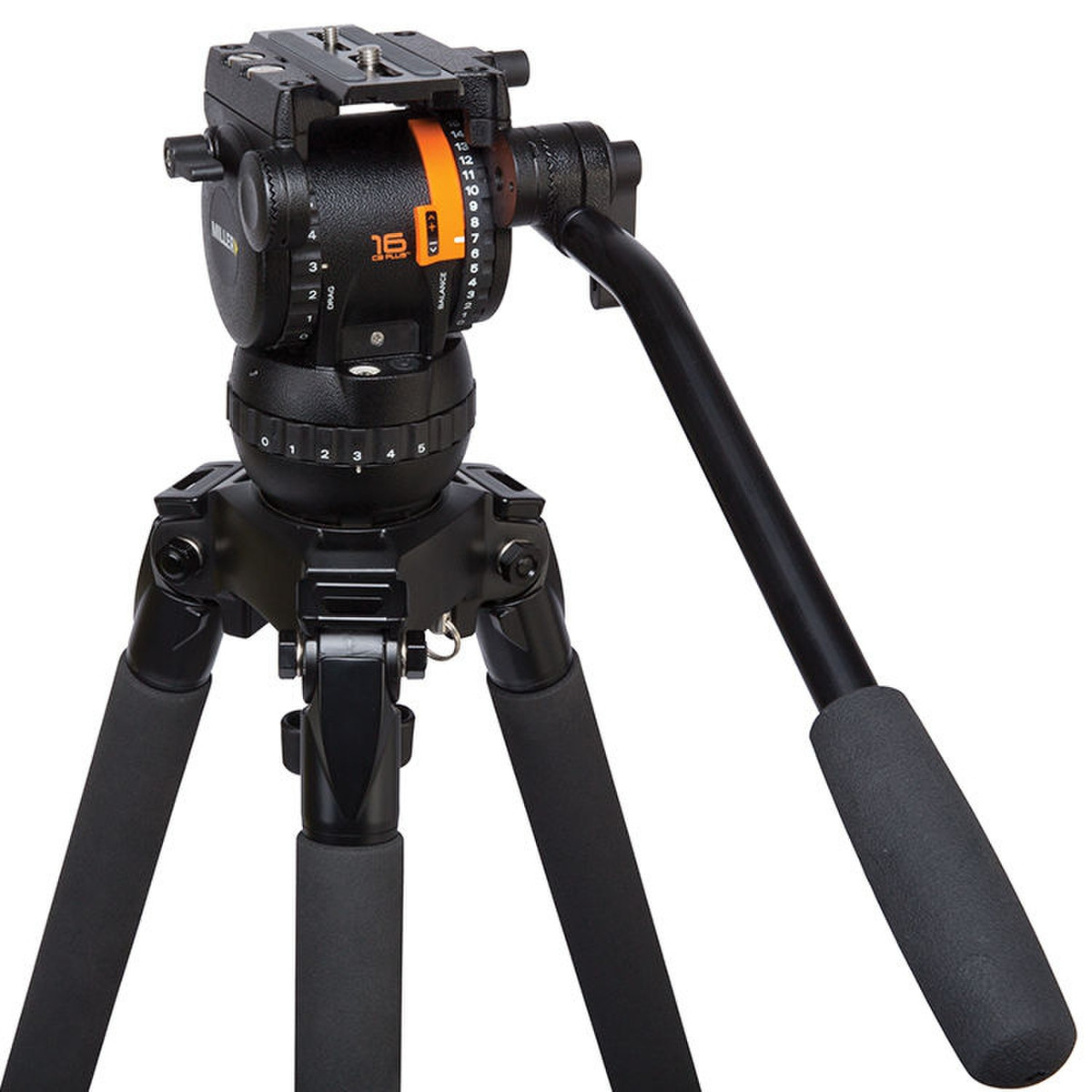

CX8 is the premium head in the 75mm ball levelling CompassX series. Designed for camera rigs from 0kg to 12kg, with CB plus 16 balance positions and 5 levels of fluid drag, it sets the standard in professional compact camera supports.
The CX8 is matched with the 2-stage Toggle (alloy) tripod and above ground spreader to yield a large height range 570-1740mm (22.4-68.5″), offer positive leg toggle locks and the versatility of using the system across all terrains.


Specification – CX8 Toggle 2 Stage Alloy

Payload Range 0-12kg (0-26.4lbs)
Weight 6.8kg (14.8lbs)
Height Range 570-1740mm (22.4-68.5″)
Transport Length 860mm (33.9″)
Counterbalance Positions 16 selectable positions (15+0)
Pan Tilt Drag 5 selectable fluid drag positions + 0
Pan Tilt Locks Positive lock calliper brake system
Tilt Range + 90°/ -75°
Pan Range 360°
Camera Platform Quick release, side load camera plate
Sliding Range 60mm (2.4″)
Mounting Base Ø75mm (2.9″) ball levelling
Height Above Bowl 167mm (6.6″)
Illuminated Controls Bubble level
Pan Handle Fixed length 390mm (15.4″)
Temperature Range -40° to +65°C (-40° to +149°F)
Leg Extension 2-stage
Lock Type Toggle
Leg Material Alloy
1093 CX8 fluid head
420 Toggle 75 2-stage tripod (alloy)
508 Above ground spreader
550 Rubber feet (set of 3)
679 Pan handle – fixed with clamp
554 Shoulder strap (padded)

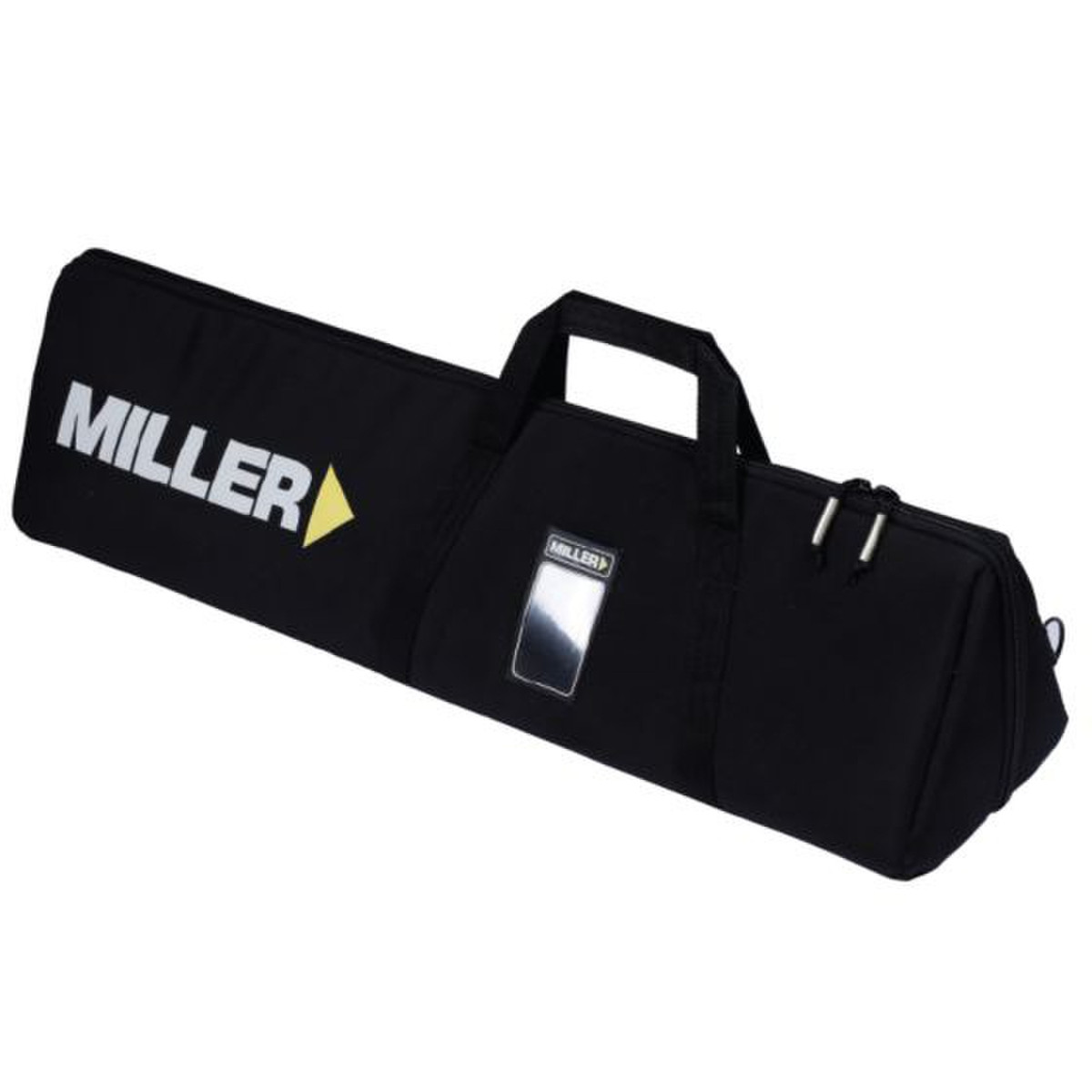

3514 Softcase 2-stage
