Overall System | |
---|---|
Operating Frequencies | 2.4 GHz ISM band (2400 to 2483.5 MHz) |
Frequency Response | 20 Hz to 20 kHz Depending on microphone type |
Operating Range | 60 m (200′) Open range env. with no interfering signals |
Total Harmonic Distortion | <0.05% typical |
Operating Temperature Range | 0° C to +40° C (32° F to 104° F) Battery performance may be reduced at very low temperatures |
Handheld Transmitter | |
RF Power Output | 10 mW |
Spurious Emissions | Following federal and national regulations |
Battery Type | Two 1.5V AA not included |
Battery Life | >7 hours (alkaline) Depending on battery type and use pattern |
Dimensions | 254.8 mm (10.03″) long, 50.0 mm (1.97″) diameter |
Net Weight | 280 grams (9.9 oz) without batteries |
Accessories Included | AT8456a Quiet-Flex™ stand clamp |
Body Pack | |
RF Power Output | 10 mW |
Battery Life | >7 hours (alkaline) Depending on battery type and use pattern |
Battery Type | Two 1.5V AA not included |
Dimensions | 70.2 mm (2.76″) W x 107.0 mm (4.21″) H x 24.9 mm (0.98″) D |
Input Connections | Four-pin Locking Connector Pin 1: GND, Pin 2: INST INPUT, Pin 3: MIC INPUT, Pin 4: DC BIAS +9V |
Net Weight | 100 grams (3.5 oz) without batteries |
Spurious Emissions | Following federal and national regulations |
Receiver | |
Receiving System | Diversity (frequency/time/space) |
Maximum Output Level | XLR, balanced: 0 dBV 1/4″ (6.3 mm), unbalanced: +6 dBV |
Power Supply | 100-240V AC (50/60 Hz) to 12V DC 0.5A power supply switched mode external |
Operating Temperature Range | 40° F (4° C) to 110° F (43° C) |
Dimensions | 209.8 mm (8.26″) W x 44 mm (1.73″) H x 169.3 mm (6.67″) D |
Weight | 940 grams (33.2 oz) |
Accessories Included | AC adapter, Link cable, Rack-mount adapters, Joining plate, Rubber feet |
Output Connector | Remote Receiver Connector: RJ45 Link Connector: RJ12 |
Wireless Microphones

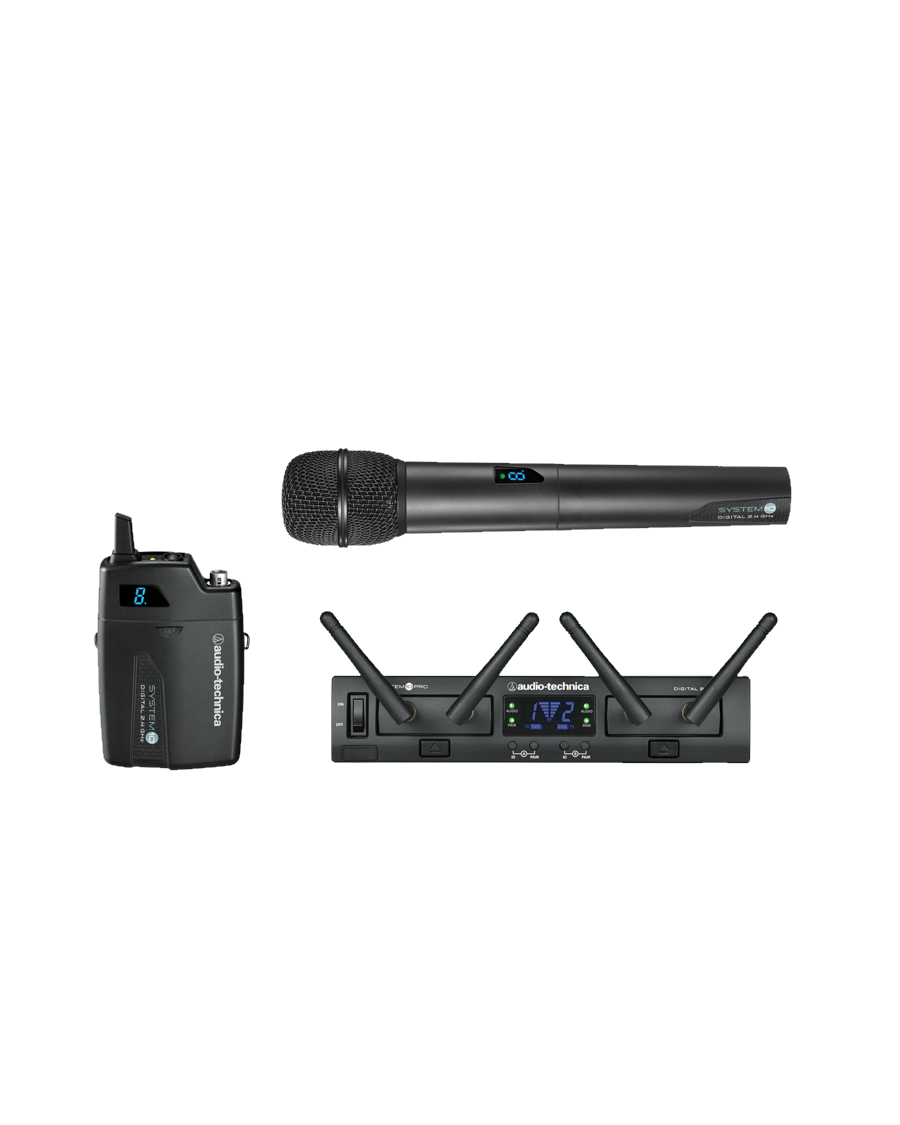

Audio-Technica ATW-1302 System10 Pro wireless mic system. One RU13 receiver and one HH transmitter

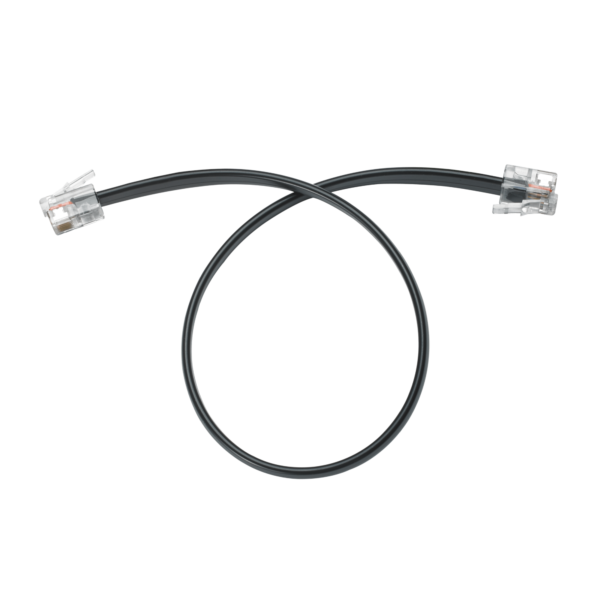

The durable half-rack chassis is equipped to house two receiver units that can be operated locally or released from the chassis and mounted remotely (up to 328 feet away) via Ethernet cable. Up to five chassis (10 receiver units) can be linked using the RJ12 cable included with each system, creating a stable, multichannel system with the simultaneous use of up to 10 channels.
$779.00
