Fxlion Skypower 48V DC Output Adapter & Charger V-Mount


The classic Skypower Series features a 24V and 48V version for V-Mount or Gold-Mount batteries. Both versions act as battery charger and power station. The charging output is 2 Amps at 16.8 Volts.

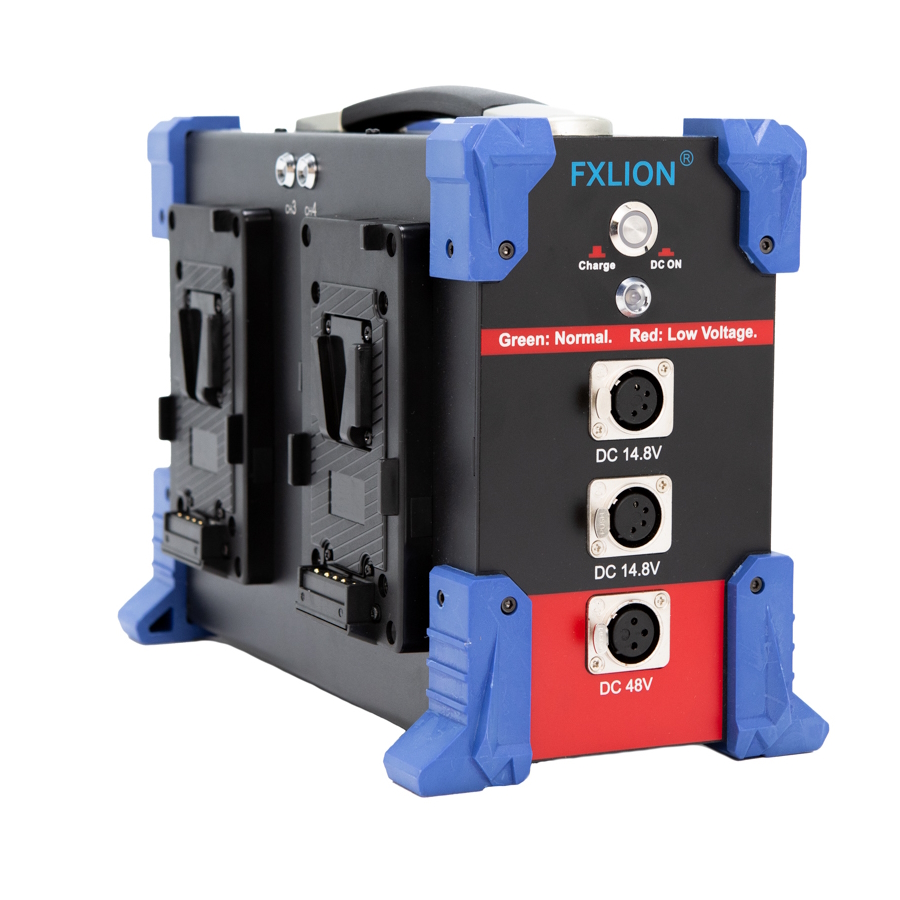

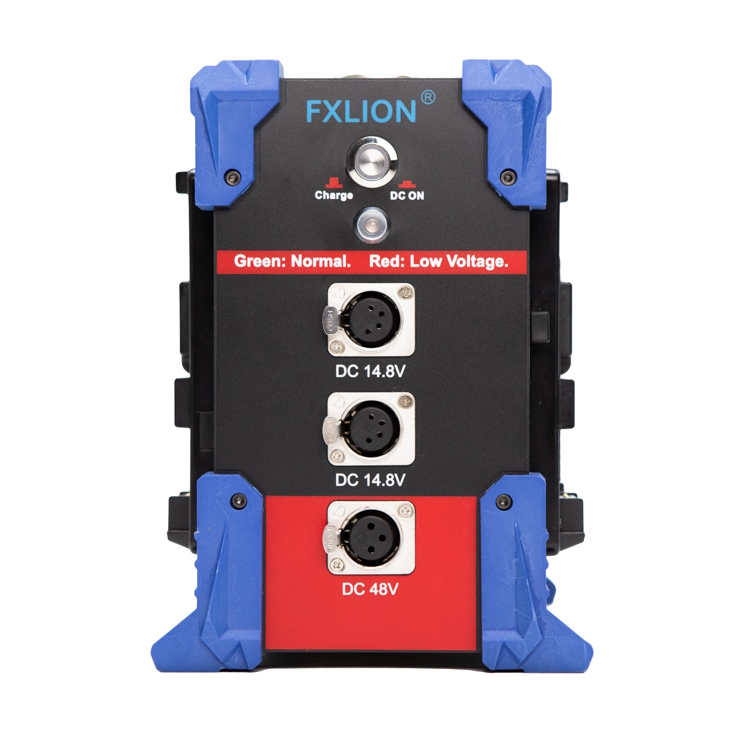

If you put four 14.8V batteries on it, doesn’t matter how much capacity they have, the 14.8 volts are being transformed to 24V or 48V (according to the version). At the same time you have two 14.8V outputs via XLR Connector to power anything that accepts this voltage. This could be a camera via XLR to D-TAP cable or any other electrical equipment that runs on 14.8V. Fxlion offers different types of cables.

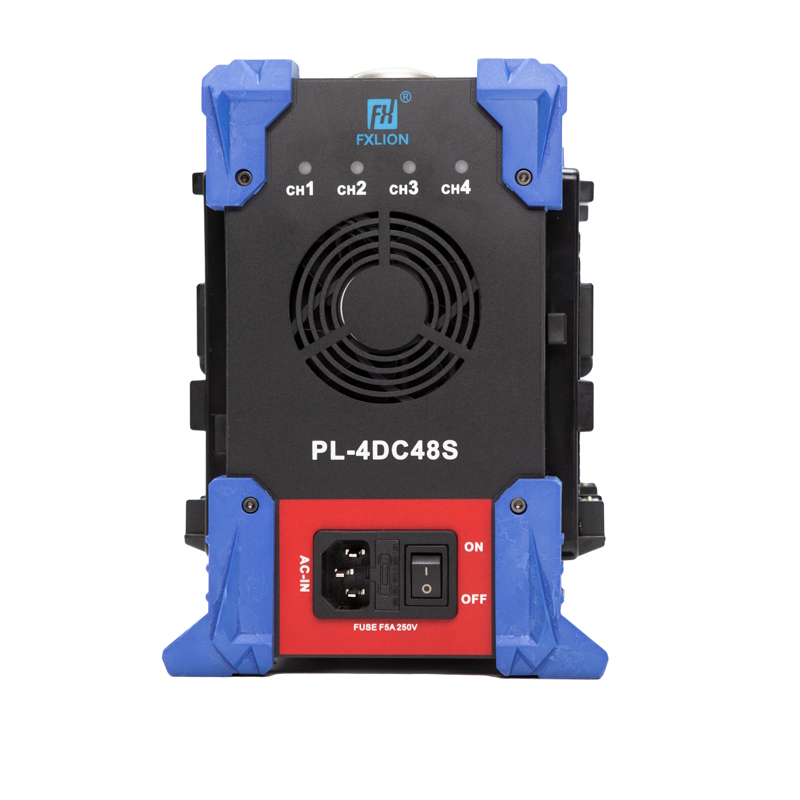

The power station and charger can’t work together at the same time. To switch to the DC Output (transformer) there’s a switch on the upper side of the front panel. On the back you’ll find a status indicator for each of the four channels.


DC Output Adapter
DC Input: 14.8V * 4 (Battery)
DC Outputs: 1 x 48V/10A (max.) 2 x 14.8V/10A (max.)
Power: 480W
Features: 14.8V and 24V work simultaneously

Input: 100-240V 47-63Hz
Output: 16.8V/2.0A*4
Features: Charge four pieces battery simultaneously
Dimensions: 304(L)mm*154(W)mm*227(H)mm
Weight: 3400g

SKU: FXL-PL-4DC48S Category: Brand:
