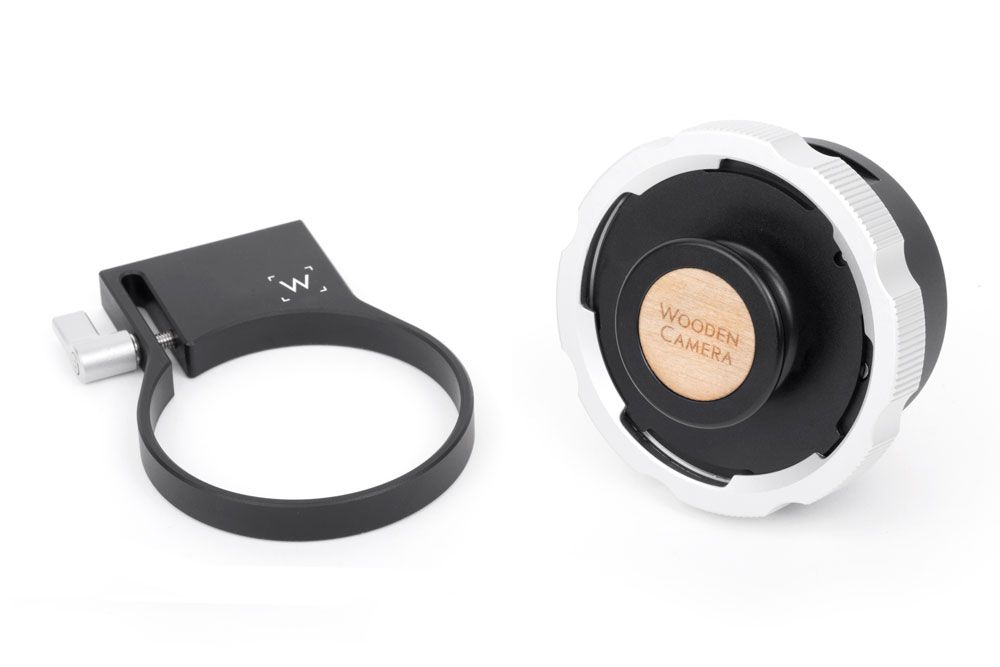

Wooden Camera E-Mount to PL Mount Pro (Sony FX9, FS7, FS7MkII)

Wooden Camera

Adapts Sony FS7 E-Mount to ARRI PL Mount. Removable Support Brace. Includes Set of Shims.


E-Mount to PL Adapter Pro (Sony FS7, FS7MKII) is a shimmable Sony E-Mount to PL mount adapter that enables mounting of all PL mount lenses onto the Sony PXW-FS7 and FS7mkII cameras. In our factory, we set the flange focus to match a Sony FS7 camera. You only need to adjust the shims should you find that your camera is out of calibration. The adapter is shimmable by loosening six socket cap screws around the collar area, separating the two sections, and adding colour coded shims of various thickness. Back focus should be checked using collimation tools or a wide lens focused to infinity. Mount includes a support ring that integrates with our Top Plate (Sony FS7), a highly recommended addition to this system. Loosen the support ring thumbscrew to quickly remove the mount and install another adapter (support ring will not work with FS7mkII). We are working on additional E-Mount to Canon, Nikon, etc. that will be available in the near future and will integrate with the same ring support.We also include a 1/4-20 Support Foot, that attaches to the bottom of the E-Mount to PL Mount, with 1/4-20 threaded hole for attaching to a tripod eliminating strain on the camera. The support foot can also be attached to the Unified Baseplate (Sony FS7) or (Sony FS5) using the vertical support hole and the Unified Lens Adapter Support Kit. PL Cap included to prevent dust from entering sensor area when lens is not attached.This adapter will also work with any E-Mount camera like the FS7mkII, FX9, A7, A7r, A7s, A7II, FS100, FS700, NEX-5, NEX-6, NEX-7, etc, however, the support ring would not be utilized.Features:Support ring capable of integrating with Top Plate (Sony FS7, FS7MKII)Includes:(2) 1/4-20×1/2″ socket cap screwse-Mount to PL Mount (FS7) Instructions

SKU: 54.194 Category: Brand:
