LED drivers

LEDrive CC 12 Rack Mount is a constant current LED dimmer, utilising DMX/RDM control. It features advanced 16 bit dimming technology, allowing different dimming curves to be set. The unit is flicker free and film and TV compatible. Standalone speed-adjustable fade effects can be triggered by the onboard switches or RDM. The unit has 12 channels of output, for use with up to 2500mA LEDs. It has a built-in 320W power supply.

RDM compliant device “ANSI/ESTA E1.20 Entertainment Technology – Remote Device Management over USITT DMX512”.

RDM or Remote Device Management is a protocol enhancement to DMX512 that allows bi-directional communications between light fixtures and lighting consoles or RDM specific software over a standard DMX line.

FEATURES
• DMX-512 input and output.
• Internal power supply 48VDC 320W.
• Terminal strip or RJ45 output.
• 2 main indication LEDs.
 
SPECIFICATIONS
• Input voltage: 100 – 240VAC.
• Power supply: Internal 320W. Can be used with external power supply.
• Dimensions: 483 (W) x 240 (D) x 88 (H).
• Mounting method: Rack Mount.
• DMX working mode: 12 channels.
• DMX signal input: XLR or RJ45.
• DMX signal output: XLR or RJ45.
• Outputs: 12 channels.
• Addressing: Via onboard switches or RDM.
• Driving capacity: Up to 2500mA per channel, with combined total of 320W across all channels using the built-in power supply.
• Temperature: 0 – 40 degrees Celsius.

LEDrive CC 12 Wall Mount is a constant current LED dimmer, utilising 0-10V analogue control. The unit is flicker free and film and TV compatible. The unit has 12 channels of output, for use with up to 2500mA LEDs. It has a built-in 320W power supply.

FEATURES
• 0-10V control input.
• Internal power supply 48VDC 320W.
• Terminal strip or RJ45 output.
• 1 main indication LED.

SPECIFICATIONS
• Input voltage: 100 – 240VAC.
• Power supply: Internal 320W. Can be used with external power supply.
• Dimensions: 265 (W) x 360 (L) x 70 (H).
• Mounting method: Desktop, Wall or Ceiling.
• Control input: Terminal strip.
• Outputs: 12 channels.
• Driving capacity: Up to 2500mA per channel, with combined total of 320W across all channels using the built-in power supply.
• Temperature: 0 – 40 degrees Celsius.

LEDrive CC 24 Rack Mount is a constant current LED dimmer, utilising DMX/RDM control. It features advanced 16 bit dimming technology, allowing different dimming curves to be set. The unit is flicker free and film and TV compatible. Standalone speed-adjustable fade effects can be triggered by the onboard switches or RDM. The unit has 24 channels of output, for use with up to 2500mA LEDs. It has a built-in 640W power supply.

RDM compliant device “ANSI/ESTA E1.20 Entertainment Technology – Remote Device Management over USITT DMX512”.

RDM or Remote Device Management is a protocol enhancement to DMX512 that allows bi-directional communications between light fixtures and lighting consoles or RDM specific software over a standard DMX line.

FEATURES
• DMX-512 input and output.
• 2 x internal power supply 48VDC 320W.
• Terminal strip or RJ45 output.
• 2 main indication LEDs.

SPECIFICATIONS
• Input voltage: 100 – 240VAC.
• Power supply: Internal 2 x 320W. Can be used with external power supply.
• Dimensions: 483 (W) x 370 (D) x 88 (H).
• Mounting method: Rack Mount.
• DMX working mode: 24 channels.
• DMX signal input: XLR or RJ45.
• DMX signal output: XLR or RJ45.
• Outputs: 24 channels.
• Addressing: Via onboard switches or RDM.
• Driving capacity: Up to 2500mA per channel, with combined total of 640W across all channels using the built-in power supply.
• Temperature: 0 – 40 degrees Celsius.

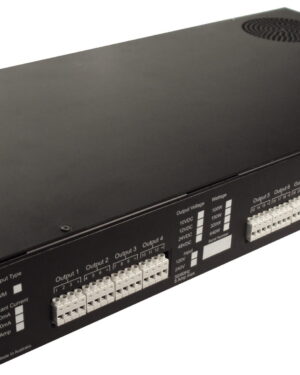

LEDrive CC 24 Wall Mount is a constant current LED dimmer, utilising 0-10V analogue control. The unit is flicker free and film and TV compatible. The unit has 24 channels of output, for use with up to 2500mA LEDs. It has a built-in 640W power supply.

FEATURES
• 0-10V control input.
• 2 x internal power supply 48VDC 320W.
• Terminal strip or RJ45 output.
• 1 main indication LED.

SPECIFICATIONS
• Input voltage: 100 – 240VAC.
• Power supply: Internal 2 x 320W. Can be used with external power supply.
• Dimensions: 270 (W) x 530 (L) x 70 (H).
• Mounting method: Desktop, Wall or Ceiling.
• Control input: Terminal strip.
• Outputs: 24 channels.
• Driving capacity: up to 2500mA per channel, with combined total of 640W across all channels using the built-in power supply.
• Temperature: 0 – 40 degrees Celsius.

LEDrive CC 4 DIN Rail Current Monitoring is a constant current LED dimmer, utilising DMX/RDM control. The unit has 4 channels of output, for use with up to 1200mA LEDs. It features current feedback that allows a user to monitor the current of each output for diagnostic purposes.

RDM compliant device “ANSI/ESTA E1.20 Entertainment Technology – Remote Device Management over USITT DMX512”.

RDM or Remote Device Management is a protocol enhancement to DMX512 that allows bi-directional communications between light fixtures and lighting consoles or RDM specific software over a standard DMX line.

LEDrive CC 4 DIN Rail Current Monitoring can be supplied with an external 12 – 48VDC power supply.

FEATURES
• DMX-512 input and output.
• External power supply 12 – 48VDC.
• RJ45 output.
• 2 main indication LEDs.
• Operating modes:
1. Pre-programmed lighting scenes: Choose from several pre-programmed scenes via RDM.
2. Control of the channels via DMX.

SPECIFICATIONS
• Input voltage: 10 – 48VDC.
• Power supply: External.
• Dimensions: 110mm (L) x 90mm (W) x 60mm (H).
• Mounting method: DIN Rail.
• DMX working mode: 4 channels.
• DMX signal input: Terminal strip/RJ45.
• DMX signal output: RJ45.
• Outputs: 4 channels.
• Addressing: Via RDM.
• Driving capacity: Up to 1200mA per channel.
• Temperature: 0 – 40 degrees Celsius.

LEDrive CC 6 DIN Rail is a constant current LED dimmer, utilising 0-10V analogue control. The unit is flicker free and film and TV compatible. The unit has 6 channels of output, for use with up to 1200mA LEDs.

LEDrive CC 6 DIN Rail can be supplied with an external 12 – 48VDC power supply.

FEATURES
• 0-10V control input.
• External power supply 12 – 48VDC.
• Terminal strip output.

SPECIFICATIONS
• Input voltage: 10 – 48VDC.
• Power supply: External.
• Dimensions: 110mm (L) x 90mm (W) x 60mm (H).
• Mounting method: DIN Rail.
• Control input: Terminal strip.
• Outputs: 6 channels.
• Driving capacity: Up to 1200mA per channel.
• Temperature: 0 – 40 degrees Celsius.

LEDrive CV 1 Desktop is a high output single channel desktop driver for constant voltage LEDs. This unit is controlled via potentiometer or push dimm. It features terminal strip output and input connector and 5A driving capacity.

LEDrive CV 1 Desktop can be supplied with an external 12 – 36VDC power supply.

FEATURES
• Potentiometer or push dimm control.
• External power supply 12 – 36VDC.
• Terminal strip output.

SPECIFICATIONS
• Input voltage: 10 – 36VDC.
• Power supply: External.
• Dimensions: 120mm (L) x 30mm (W) x 30mm (H).
• Mounting method: Desktop.
• Control input: Terminal strip.
• Outputs: 1 channel.
• Driving capacity: Up to 5A per channel.
• Output voltage: Equal to input voltage – stabilised voltage (PWM).
• Temperature: 0 – 40 degrees Celsius.

LEDrive CV 12 Rack Mount is a constant voltage LED dimmer, utilising 0-10V analogue control. High PWM frequency (10 KHz) makes it flicker free and film and TV compatible. The unit has 12 channels of output, each with 5A fuse protection. It has a built-in 320W power supply.

FEATURES
• 0-10V control input.
• Internal power supply 12/24VDC 320W.
• Terminal strip output.
• 1 main indication LED.

SPECIFICATIONS
• Input voltage: 100 – 240VAC.
• Power supply: Internal 320W. Can be used with external power supply.
• Dimensions: 483 (W) x 240 (D) x 88 (H).
• Mounting method: Rack Mount.
• Control input: Terminal strip.
• Outputs: 12 channels.
• Driving capacity: Up to 5A per channel, with combined total of 320W across all channels using the built-in power supply.
• Temperature: 0 – 40 degrees Celsius.
