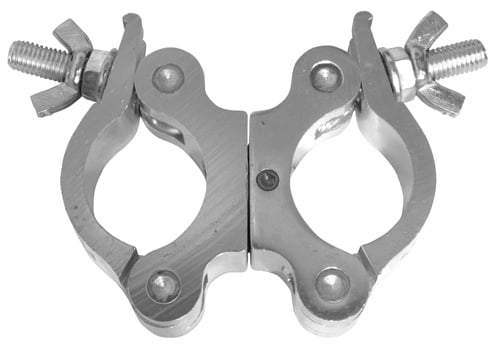

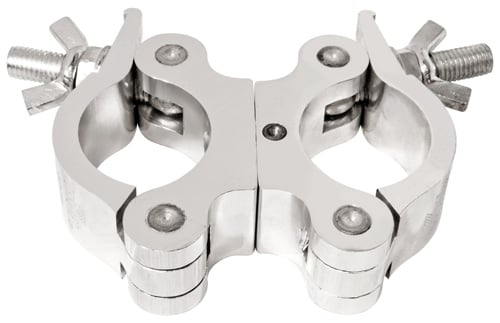

Chauvet DJ CLP-25N 50mm Coupling Clamp
The CLP-25N is a heavy duty narrow tube clamp for your rigging needs, this clamp has a max loading of 250Kg and is designed to be easily fitted to 50mm truss and can pivot in the center to allow for a greater number of applications.
$69.00
Features:
• Narrow design fits between cross braces with ease
• Swivels on its center to allow for complex rigging
• Made of heavy-duty material that lasts for years
• Wraps completely around truss for added security and stability
Specifications:
• Load capacity: 250kg
• Fits: 2in (50mm) truss
• Weight: 0.6kg
• Size: 171 x 116 x 30mm
