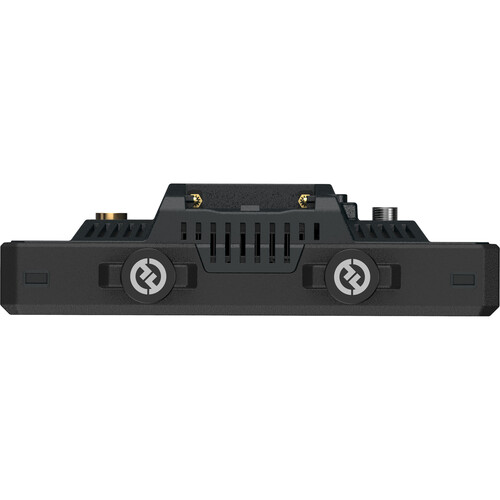

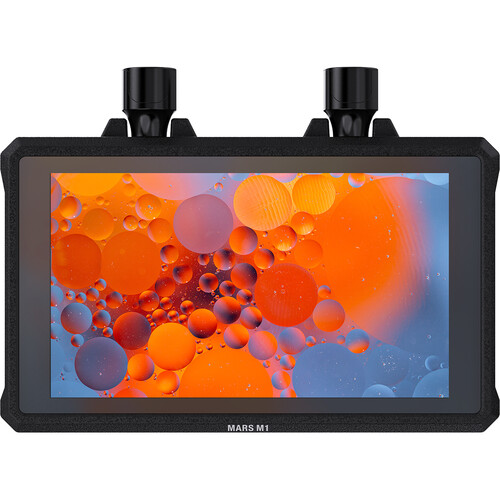

Hollyland Mars M1 5.5″ Wireless Transceiver Monitor
Wirelessly Monitor Video from up to 450′
Transmitter & Receiver Mode Switching
New Capsule Antennas & Record/Playback
5.5″ Touchscreen 1920 x 1080 Display
Up to 4K30 Video SDI Input, HDMI In/Out
Presets & USB-C 3D LUT Import
High 1000 cd/m² Brightness
Low 0.08s Latency, Smart Channel Scan
DC Power Input & Output
Built-In L-Series Battery Plate
$749.00
Transmit, receive, and monitor high-quality wireless video transmissions using this compact Mars M1 Enhanced 5.5″ Wireless Transceiver Monitor from Hollyland. The Mars M1 Enhanced provides new features including a record/playback review feature that can review up to 2 minutes of video for instant review, and it features a new low-profile capsule antenna design. As with the original M1, it features a 5.5″ touchscreen display that provides a sharp resolution and 1000 cd/m² brightness for follow focus and director’s monitoring applications. Its built-in wireless transmitter and receiver allow you to send and receive video between M1 units as well as to/from the Mars 400S Pro, Mars 300 Pro, and Mars 4K wireless transmitters/receivers at a distance of up to 450′. You can also monitor video from the M1 Enhanced on smartphones and tablets running the companion HollyView app.
Related products
-
On camera monitors
SmallHD Indie 7 Komodo Kit / DSMC3
The lightweight Touchscreen On-Camera Monitor provides professional monitoring in a sharp 7″ IPS LCD with 1920 x 1200 resolution, 10-bit colour processing, 1000 cd/m² brightness, 1000:1 contrast ratio, touchscreen control, and updated SmallHD PageOS 4 firmware. It features HDMI and 3G-SDI inputs and outputs, and it supports up to UHD 4K video input via HDMI.
The INDIE 7 is powered using the included L-series battery plate or using the 2mm barrel input with a DC adapter. It can also be powered using separately available Gold mount or V-mount battery plates. An SD card slot allows you to import custom 3D LUTs and a micro-USB port to provide upgrades to the display. Four 1/4″-20 threads allow you to mount the monitor in a variety of configurations. The 3.5mm headphone jack allows you to monitor the embedded audio from the HDMI or 3G-SDI inputs.
SKU: SHD-33.1.MON-16-0712-R2 -
On camera monitors
Blackmagic Design Blackmagic Video Assist 5″ 12G HDR
Blackmagic Video Assist 5” 12G HDR adds professional monitoring and recording to any SDI or HDMI camera in all HD, Ultra HD, 2K and 4K DCI formats! The super bright 2500nit 5 inch HDR monitor supports 3D LUTs and features professional scopes along with powerful focus assist and exposure tools that help you accurately set focus, exposure and frame shots. The built in SD card recorder save files in broadcast quality 10‑bit 4:2:2 ProRes or DNx formats. The files are all standard, so you can start editing immediately without having to convert them!
SKU: BLA-HYPERD/AVIDA12/5HDR -
On camera monitors

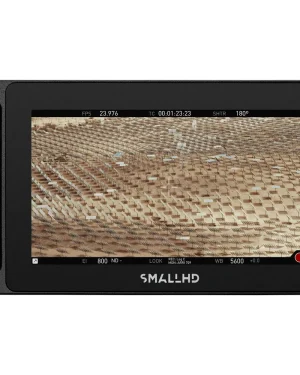

SmallHD Ultra 5 LCD Monitor + Bolt 6 RX 750 V-mount
Add an ultra-bright monitor with wireless control to your production rig with the V-mount SmallHD ULTRA 5 Bolt 6 RX 750 Monitor Kit. The unit includes an ULTRA 5 bright 5″ on-camera monitor and a Bolt 6 TX monitor module from Teradek. The monitor features a 3000 bright cd/m² display, a 1920 x 1080 touchscreen LCD, HDMI and 3G-SDI inputs/outputs, camera control options, and 10-bit 4:2:2 Rec. 709 color processing.
The monitor module installs onto the back of the monitor and provides power to the monitor via a V-mount battery, and it receives wireless video transmissions from up to 750′. The RX module can receive via the 6 GHz band from Teradek Bolt 6 series transmitter, as well as from 5 GHz transmitters such as the Teradek Bolt 4K series.
SKU: SHD-33.1.16-0528-VM -
On camera monitors

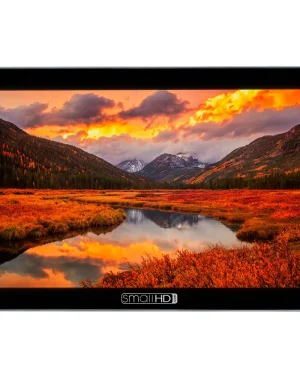

SmallHD Cine 7 Monitor
